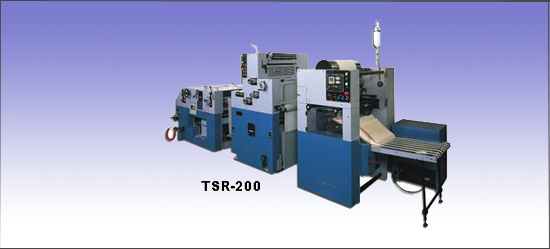

 TSR-200 Taiyo 2 Color Variable Business Forms Press

 TSR-200 Taiyo 2 Color Variable Business Forms Press

Features
  Performs short run and various jobs effectively
  Capable of printing more than 10 different jobs per day
  Equipped with variable cross perforation and available for various divisions
  Equipped with rotary type inking system and one cylinder covers various printing size
  Equipped with computerized pitch control system for paper length control on unwind
  Key enter system for web end stop at preset diameter on unwind

Specifications
Max. paper width 17-1/4"(438mm)
Max. printing width 16-1/4"(413mm)
Max. paper roll dia. 700 mm
Max. line speed 200 stroke per minute (14" size)
Line punch station 16" circ, single x 2, Lateral adjustment by manual handle. (Gear side fixed)
Slitter Score cut type
Cross perforation Variable type 7" - 14" (1/6", 1/8" increment), Taiyo alcohol dampening system
Offset unit 2 Color Variable type 7"-14" (1/12" increment) by servo control system

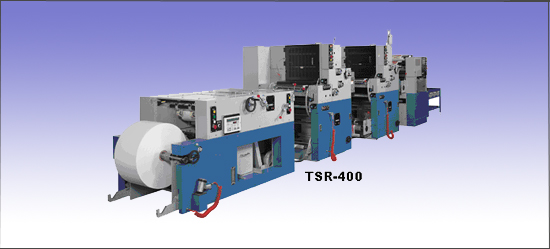

 TSR-400 Taiyo 4Color Variable Business Forms Press
